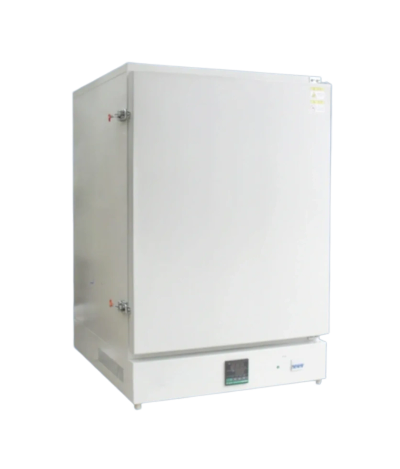

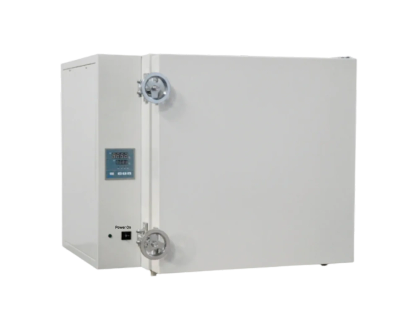

HIGH-TEMPERATURE FORCED AIR OVENS

Product Type:High Temperature Hot Air Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Ambient Temperature +10℃—500℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±1℃

Temperature Uniformity: ≤±2.5%

Input Power: 3000W

Work Volume: 32L

Chamber Dimensions (mm): 320 (W) * 320 (D) * 300 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The chamber features a stainless steel inner liner with rounded corners and automatically removable partition supports for easy cleaning.

2. It utilizes the latest P.I.D. fuzzy logic processing controller, ensuring rapid reach of set values ​​and more precise and stable operation.

3. An independent over-temperature alarm system automatically shuts down the system if the temperature exceeds the limit, ensuring safe experimental operation and preventing accidents (optional).

4. It has a 4~20mA standard current rating and an RS485 interface for connecting to a recorder and computer to record temperature parameter changes (optional).

5. A 50mm diameter test hole is located on the left side of the chamber for convenient experimental operation and temperature measurement (optional).

• Intelligent programmable LCD temperature controller: A microcomputer temperature controller with temperature control protection, digital display, and timing function, providing precise and reliable temperature control.
• Recorder: The paperless recorder uses a single-chip microprocessor as its core, features a large LCD screen, and boasts high performance, high reliability, low maintenance, and no consumables. It serves as a replacement for ordinary paper recorders. Accuracy: Real-time display ±0.5%FS, curve display ±0.5%FS. Up to 12 display modes: long-life LCD monochrome curve, graph, digital, mixed, memory, alarm, etc. LCD backlight: backlight, fully intelligent contrast and brightness adjustment functions, clear and easy to read. Recording interval: 1 second to 1 minute. Storage space: maximum recording time of over six months. Communication method: USB interface.
• Thermal printer.

Product Type: High Temperature Hot Air Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Ambient Temperature +10℃—300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±1℃

Temperature Uniformity: ≤±2.5%

Input Power: 4000W

Work Volume: 50L

Chamber Dimensions (mm): 410 (W) *350 (D) * 350 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The chamber features a stainless steel inner liner with rounded corners and automatically removable partition supports for easy cleaning.

2. It utilizes the latest P.I.D. fuzzy logic processing controller, ensuring rapid reach of set values ​​and more precise and stable operation.

3. An independent over-temperature alarm system automatically shuts down the system if the temperature exceeds the limit, ensuring safe experimental operation and preventing accidents (optional).

4. It has a 4~20mA standard current rating and an RS485 interface for connecting to a recorder and computer to record temperature parameter changes (optional).

5. A 50mm diameter test hole is located on the left side of the chamber for convenient experimental operation and temperature measurement (optional).

• Intelligent programmable LCD temperature controller: A microcomputer temperature controller with temperature control protection, digital display, and timing function, providing precise and reliable temperature control.
• Recorder: The paperless recorder uses a single-chip microprocessor as its core, features a large LCD screen, and boasts high performance, high reliability, low maintenance, and no consumables. It serves as a replacement for ordinary paper recorders. Accuracy: Real-time display ±0.5%FS, curve display ±0.5%FS. Up to 12 display modes: long-life LCD monochrome curve, graph, digital, mixed, memory, alarm, etc. LCD backlight: backlight, fully intelligent contrast and brightness adjustment functions, clear and easy to read. Recording interval: 1 second to 1 minute. Storage space: maximum recording time of over six months. Communication method: USB interface.
• Thermal printer.

Product Type: High Temperature Hot Air Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Ambient Temperature +10℃—300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±1℃

Temperature Uniformity: ≤±2.5%

Input Power: 5000W

Work Volume: 90L

Chamber Dimensions (mm): 450 (W) *450 (D) * 450 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The chamber features a stainless steel inner liner with rounded corners and automatically removable partition supports for easy cleaning.

2. It utilizes the latest P.I.D. fuzzy logic processing controller, ensuring rapid reach of set values ​​and more precise and stable operation.

3. An independent over-temperature alarm system automatically shuts down the system if the temperature exceeds the limit, ensuring safe experimental operation and preventing accidents (optional).

4. It has a 4~20mA standard current rating and an RS485 interface for connecting to a recorder and computer to record temperature parameter changes (optional).

5. A 50mm diameter test hole is located on the left side of the chamber for convenient experimental operation and temperature measurement (optional).

• Intelligent programmable LCD temperature controller: A microcomputer temperature controller with temperature control protection, digital display, and timing function, providing precise and reliable temperature control.
• Recorder: The paperless recorder uses a single-chip microprocessor as its core, features a large LCD screen, and boasts high performance, high reliability, low maintenance, and no consumables. It serves as a replacement for ordinary paper recorders. Accuracy: Real-time display ±0.5%FS, curve display ±0.5%FS. Up to 12 display modes: long-life LCD monochrome curve, graph, digital, mixed, memory, alarm, etc. LCD backlight: backlight, fully intelligent contrast and brightness adjustment functions, clear and easy to read. Recording interval: 1 second to 1 minute. Storage space: maximum recording time of over six months. Communication method: USB interface.
• Thermal printer.

Product Type: High Temperature Hot Air Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Ambient Temperature +10℃—300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±1℃

Temperature Uniformity: ≤±2.5%

Input Power: 6000W

Work Volume: 216L

Chamber Dimensions (mm): 600 (W) *600 (D) * 600 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The chamber features a stainless steel inner liner with rounded corners and automatically removable partition supports for easy cleaning.

2. It utilizes the latest P.I.D. fuzzy logic processing controller, ensuring rapid reach of set values ​​and more precise and stable operation.

3. An independent over-temperature alarm system automatically shuts down the system if the temperature exceeds the limit, ensuring safe experimental operation and preventing accidents (optional).

4. It has a 4~20mA standard current rating and an RS485 interface for connecting to a recorder and computer to record temperature parameter changes (optional).

5. A 50mm diameter test hole is located on the left side of the chamber for convenient experimental operation and temperature measurement (optional).

• Intelligent programmable LCD temperature controller: A microcomputer temperature controller with temperature control protection, digital display, and timing function, providing precise and reliable temperature control.
• Recorder: The paperless recorder uses a single-chip microprocessor as its core, features a large LCD screen, and boasts high performance, high reliability, low maintenance, and no consumables. It serves as a replacement for ordinary paper recorders. Accuracy: Real-time display ±0.5%FS, curve display ±0.5%FS. Up to 12 display modes: long-life LCD monochrome curve, graph, digital, mixed, memory, alarm, etc. LCD backlight: backlight, fully intelligent contrast and brightness adjustment functions, clear and easy to read. Recording interval: 1 second to 1 minute. Storage space: maximum recording time of over six months. Communication method: USB interface.
• Thermal printer.
