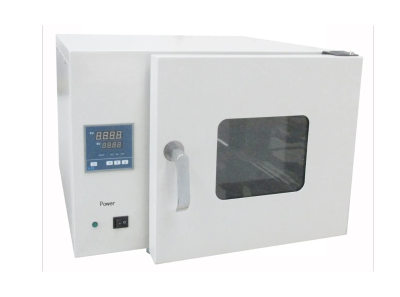

Electrical Hot Air Oven

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1000W

Combine Chamber Dimensions (mm): 300 (W) × 300 (D) × 270(H)

External Dimensions (mm): 585 (W) * 480 (D) * 440 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1050W

Combine Chamber Dimensions (mm): 340 (W) * 325 (D) * 325 (H)

External Dimensions (mm): 625 (W) * 510 (D) * 495 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1200W

Combine Chamber Dimensions (mm): 420 (W) * 350 (D) * 350 (H)

External Dimensions (mm): 700 (W) * 530 (D) * 515 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1500W

Combine Chamber Dimensions (mm): 450 (W) * 400 (D) * 450 (H)

External Dimensions (mm): 735 (W) * 585 (D) * 620 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1700W

Combine Chamber Dimensions (mm): 550 (W) * 350 (D) * 550 (H)

External Dimensions (mm): 835 (W) * 530 (D) * 725 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 2000W

Combine Chamber Dimensions (mm): 550 (W) * 450 (D) * 550 (H)

External Dimensions (mm): 835 (W) * 630 (D) * 730 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 3800V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 2100W

Combine Chamber Dimensions (mm): 600 (W) * 550 (D) * 600 (H)

External Dimensions (mm): 885 (W) * 730 (D) * 795 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 2500W

Combine Chamber Dimensions (mm): 600 (W) * 550 (D) * 600 (H)

External Dimensions (mm): 885 (W) * 730 (D) * 795 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1050W

Combine Chamber Dimensions (mm): 340 (W) * 320 (D) * 320 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 220V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 1500W

Combine Chamber Dimensions (mm): 400 (W) * 350 (D) * 500 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

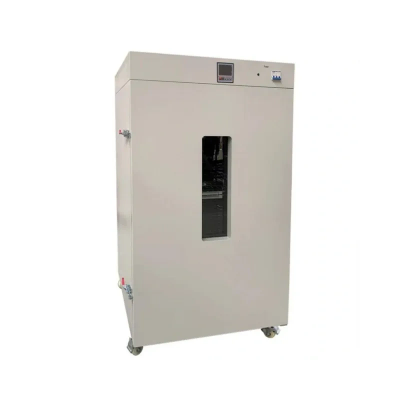

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 2500W

Combine Chamber Dimensions (mm): 450 (W) * 550 (D) * 550 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 2500W

Combine Chamber Dimensions (mm): 500 (W) * 600 (D) * 750 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 4500W

Combine Chamber Dimensions (mm): 600 (W) * 550 (D) * 1300 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC 380V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 6000W

Combine Chamber Dimensions (mm): 800 (W) * 600 (D) * 1300 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.

Product Type: Electric Heating Constant Temperature Drying Oven

Temperature Control Type: Digital Display Microcomputer Control

Power Supply Voltage: AC380V±10%/50Hz±2%

Temperature Control Range: Room temperature +10℃-300℃

Temperature Resolution: 0.1℃

Temperature Fluctuation: ≤±0.5℃

Temperature Uniformity: ≤±2.5%

Input Power: 7500W

Combine Chamber Dimensions (mm): 1000 (W) * 600 (D) * 1600 (H)

Loading Brackets: 2 pieces

Timing Range: 0-9999 minutes

1. The outer box of the box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, and the shape is beautiful.

2. The inner Chamber is made of mirror stainless steel material argon arc welding, and the arc structure design is adopted for easy cleaning.

3. The door of the box has a large viewing angle observation glass window, which is convenient for users to observe the experimental conditions.

4. The new nano-material synthetic silicon sealing strip is used, which can operate at high temperature for a long time, has a long service life, and is easy to replace.

5. The temperature control system of this machine adopts microcomputer single-chip technology. The system has functions such as temperature control, timing and over-temperature alarm, and the temperature control is accurate and reliable; it adopts dual-screen high-brightness digital tube display, the indication is accurate and intuitive, the performance is superior, and the touch button setting adjustment is adopted.

6. Hot air circulation system: It is composed of a fan that can operate continuously under high temperature conditions and a reasonable air duct circulation system, which improves the temperature uniformity in the studio; it uses high-performance motors and fan blades, has an air convection breeze device, and the air in the inner cavity can be renewed and circulated.

7. The height of the shelves in the studio can be adjusted and the number can be increased according to the user's requirements (optional).

8. The insulation material between the studio and the outer box is ultra-fine glass fiber insulation cotton, with a thickened insulation layer and good insulation effect. From the inside to the outside, the structure includes an inner cavity, an inner shell, ultra-fine glass fiber, an aluminum reflective foil, and an air interlayer, and the heat loss of the inner chamber is less.

9. An electromagnetic door lock is added to the side of the drying box door to prevent manual opening of the door during the program execution. When the program ends, the electromagnetic lock automatically loses power and the door can be opened.
